A single institution experience of total lymphoid irradiation using helical tomotherapy as part of the conditioning regimen of transplantation for severe aplastic anemia patients

Pei-Hsuan Lee1, Jian-Kuen Wu1,2, Miao-Ci Wang1, Sze-Hwei Lee3, Sung-Hsin Kuo1,4,5,6, Yu-Hsuan Chen1

1Division of Radiation Oncology, Department of Oncology, National Taiwan University Hospital, Taipei, Taiwan; 2Institute of Electro-Optical Science and Technology, National Taiwan Normal University, Taipei, Taiwan; 3Tai Cheng Stem Cell Therapy Center, National Taiwan University Cancer Center, Taipei, Taiwan; 4Graduate Institute of Oncology, National Taiwan University College of Medicine, Taipei, Taiwan; 5Cancer Research Center, National Taiwan University College of Medicine, Taipei, Taiwan; 6National Taiwan University Cancer Center, National Taiwan University College of Medicine, Taipei, Taiwan

Contributions: (I) Conception and design: PH Lee, YH Chen; (II) Administrative support: SH Kuo; (III) Provision of study materials or patients: YH Chen; (IV) Collection and assembly of data: PH Lee, JK Wu, MC Wang; (V) Data analysis and interpretation: PH Lee, SH Lee, SH Kuo, YH Chen; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Yu-Hsuan Chen. Division of Radiation Oncology, Department of Oncology, National Taiwan University Hospital, No. 1, Changde St., Zhongzheng Dist., Taipei City 10048, Taiwan. Email: yhchen@ntuh.gov.tw.

Background: Total lymphoid irradiation (TLI) plays a role in the conditioning of hematopoietic stem cell transplantation (HSCT) from non-sibling donors for severe aplastic anemia (SAA) patients. For the past decades, an anterior-posterior opposed technique has been used to deliver TLI. We present our single-institution experience of helical tomotherapy TLI.

Methods: From October 2014 to February 2019, three consecutive patients of SAA who underwent tomotherapy TLI for pre-transplantation conditioning were enlisted. We retrospectively analyzed the survival, engraftment outcome, and toxicities of these patients and created a conventional TLI plan with anterior-posterior opposed fields for each patient to compare the dosimetry difference between helical tomotherapy and the conventional technique.

Results: Among all three patients, the engraftment rate was 100%. The 18-month overall survival and event-free survival were both 66.7% among the 3 patients (2 underwent unrelated donor transplantation and 1 underwent haplo-identical related donor transplantation), and 100% for the patients who received transplantation from matched- or mismatched-unrelated donors. No patient experienced acute grade 3 or worse graft-versus-host disease (GVHD), and none of the three patients suffered from late GVHD. No significant acute or late adverse events of radiation were observed. Tomotherapy-based TLI provides better target volume coverage with an average 10% higher coverage along with greater sparing of normal tissues. The total body volume exposed to 5 Gy was an average 35% lower in the tomotherapy-based TLI.

Conclusions: TLI with non-ablative conditioning regimen provided excellent engraftment and an acceptable survival in the SAA patients who underwent non-sibling donor HSCT.

Keywords: Aplastic anemia (AA); helical tomotherapy; stem cell transplantation, hematopoietic


Received: 20 August 2019; Accepted: 02 March 2020; Published: 30 June 2020.

doi: 10.21037/tro.2020.04.02


Introduction

Aplastic anemia (AA) has rare incidence but it is 2- to 3-time more common in Asia than in Western countries (1). AA is characterized by pancytopenia and a hypocellular bone marrow. Once the diagnosis is confirmed, the patient undergoes risk stratification for different treatment strategies. The diagnosis of severe aplastic anemia (SAA) has to meet the criteria of: (I) a bone marrow biopsy showing less than 25% to 30% of normal cellularity; or a bone marrow biopsy showing less than 50% normal cellularity in which fewer than 30% of the cells are hematopoietic, and (II) at least two of the following are present, absolute neutrophil count (ANC) <500/microL, platelet count <20,000/microL, or absolute reticulocyte count (ARC) <60,000/microL (2). A SAA patient with an identical HLA sibling donor could be cured by hematopoietic stem cell transplantation (HSCT). For the patients who lack identical HLA sibling donors, they could be treated with transplantation from unrelated donors if immunosuppressive drugs fail. Figure 1 summarizes the treatment protocol for SAA at our institution. The preparative conditioning regimen of HSCT from an unrelated donor may include total lymphoid irradiation (TLI). For the past decades, TLI was administered through a linear accelerator with anterior-posterior opposed fields, mainly the mental and the inverted-Y fields. This study aimed to retrospectively review the SAA patients who underwent TLI with tomotherapy as part of their transplantation conditioning in our institution.

Figure 1 The management protocol for severe aplastic anemia for children and young adults at NTUCH. NTUCH, National Taiwan University Children’s Hospital; HSCT, hematopoietic stem cell transplantation.

Methods

Patients

We retrospectively reviewed registry data from our institute beginning from October 1, 2014; consecutively, 3 patients were enrolled in our study. Patients were eligible for the study if they had received a diagnosis of SAA and were treated with TLI as part of the conditioning regimen of HSCT with tomotherapy. Observations were carried out through February 1, 2019. The diagnosis of SAA was based on decreased cellular counts in at least 2 cell lines in the peripheral blood, and a severe hypocellular marrow with cellularity less than 25%. This study was approved by the National Taiwan University Hospital Research Ethics Committee Office (approval ID: 202001040RIN).

Treatment

All of three patients received TLI, antithymocyte globulin, and cyclophosphamide as the non-myeloablative conditioning regimen prior to HSCT. Treatment protocol for SAA patients in National Taiwan University Children’s Hospital is illustrated in Figure 2. TLI was administered from a 6-MV tomotherapy (photon beam) at a dose of 200 cGy daily, starting 10 days before transplantation, until a total of 4 doses (800 cGy) had been delivered. The clinical target volumes (CTVs) included the cervical, axillary, mediastinal, para-aortic, pelvic and inguinal nodal regions, and the spleen. The planning target volumes (PTVs) were CTVs plus a 5–10 mm margin to compromise the internal organ motions and set-up errors. For this study, we used the 25-mm slice thickness, and a pitch of 0.287 was used in the planning of the patients. In the 3rd patient, a hemisphere lead block was used for testis protection due to the short distance between the gonads and the target volume.

Figure 2 The protocol for transplantation of SAA patients at NTUCH. NTUCH, National Taiwan University Children’s Hospital; TLI, total lymphoid irradiation; Cy, Cyclophosphamide; ATG, anti-thymocyte globulin; SAA, severe aplastic anemia.

These 3 patients received cyclophosphamide at a dose of 50 mg per kg of body weight per day on day-5 through -2, with day 0 being the day of transplantation. Rabbit antithymocyte globulin, at a total dose of 6–9 mg per kg of body weight, was given intravenously on day-4 through -2. Cyclosporine A (CsA) and a short-course methotrexate were used as GVHD prophylaxis.

Dosimetry comparison

For every single patient, we created a conventional 2D plan of TLI for each patient, based on the identical CT image and the same target volumes used for the tomotherapy planning. The conventional plans were used merely for dosimetry reviewing, not for the actual treatment. The conventional TLI includes two compartments, the mantle field and the inverted-Y field. Both fields were built by lead blocks. To fairly evaluate the dose-volume distribution of these 2 different techniques, the plans were based on the identical CT image and identical contouring for CTV, PTV, and organs of risk, for each patient. For all three conventional 2D plans, we use the Pinnacle treatment planning system for dose calculation, with 10 MV photons, and assuming the transmission factor as 0.96 for the blocks.


Results

Patients’ characteristics

Table 1 summarizes the clinical features of the 3 patients enrolled in the study. All of them were classified as SAA according to the aforementioned criteria. There were no records of congenital abnormality, mental retardation, or family history of hematological disorder in the 3 patients. Every patient was first treated with steroid, and 1 to 2 courses of immunosuppressive therapy (thymocyte globulin + Cyclosporine A). They underwent HSCT from being refractory to immunosuppressive therapy. The age at the time of transplantation were 11, 21, and 8, respectively. The first and the third patients required peripheral blood stem cell transplants of matched or mismatched unrelated donors from the Buddhist Tzu Chi Stem Cell Center (BTCSCC) because they did not otherwise have an HLA-identical sibling donor. Although bone marrow transplantation holds lower risk of acute and chronic GVHD than peripheral-blood stem cell transplantation (3), it was not easy to find an unrelated donor who was willing to harvest bone marrow stem cells from the pelvic bone. The second patient, the oldest one, without a matched unrelated donor, underwent haplo-identical bone marrow transplant from the patient’s father. She was transfused with a non-T-cell-depleted product with CD34+ 1.59×10^6 and CD3 2.39×10^6 cells/kg. Post-transplant cyclophosphamide (PT-Cy) has gained popularity in recent years due to the potential to reduce GVHD for allogenic transplantation with an acceptable safety profile (4). However, none of our patients received post-transplant cyclophosphamide. The transplantation protocol of our hospital for children SAA at that time did not include the use of PT-Cy.

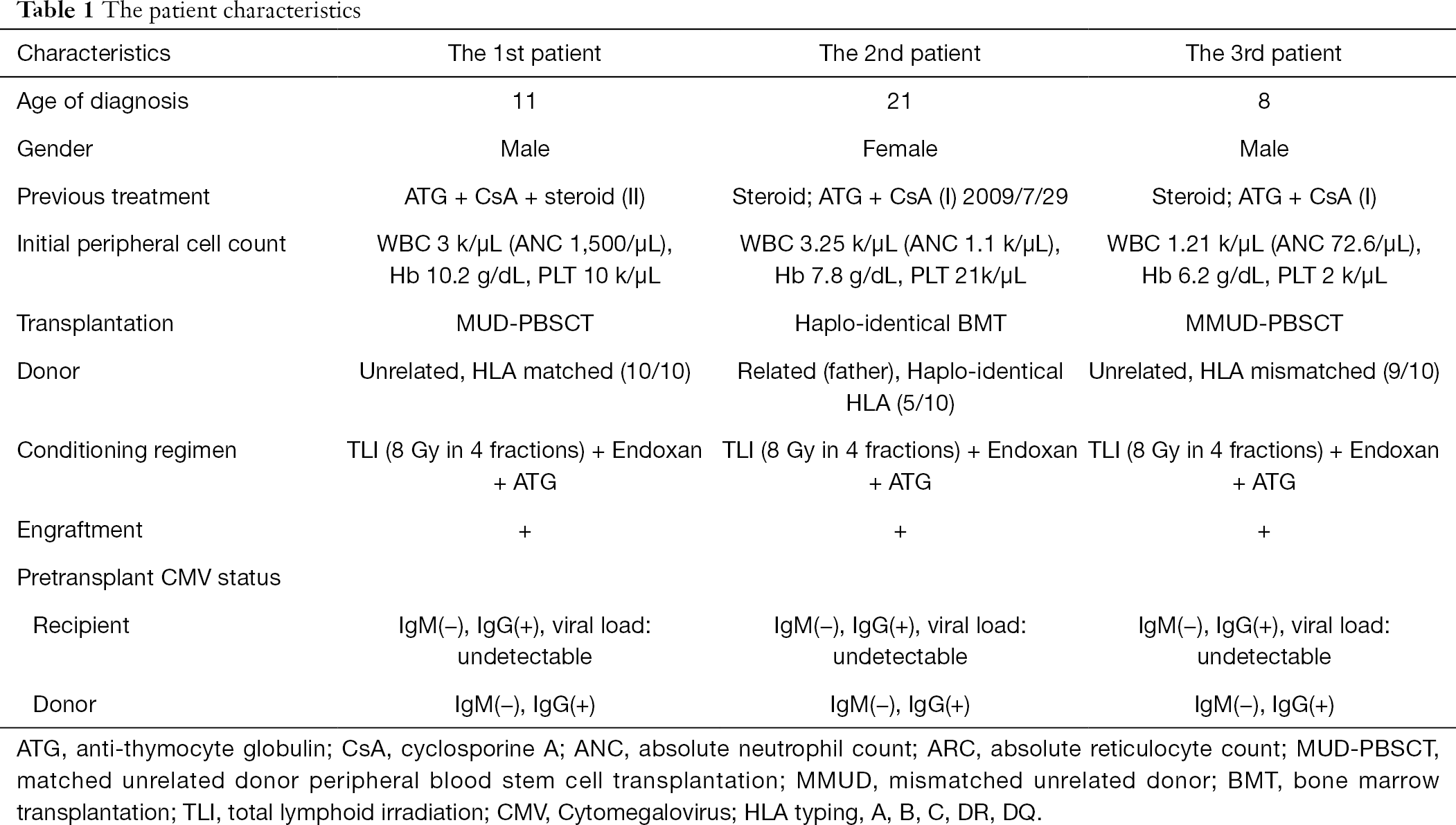

Table 1

The patient characteristics

Characteristics The 1st patient The 2nd patient The 3rd patient
Age of diagnosis 11 21 8
Gender Male Female Male
Previous treatment ATG + CsA + steroid (II) Steroid; ATG + CsA (I) 2009/7/29 Steroid; ATG + CsA (I)
Initial peripheral cell count WBC 3 k/μL (ANC 1,500/μL), Hb 10.2 g/dL, PLT 10 k/μL WBC 3.25 k/μL (ANC 1.1 k/μL), Hb 7.8 g/dL, PLT 21k/μL WBC 1.21 k/μL (ANC 72.6/μL), Hb 6.2 g/dL, PLT 2 k/μL
Transplantation MUD-PBSCT Haplo-identical BMT MMUD-PBSCT
Donor Unrelated, HLA matched (10/10) Related (father), Haplo-identical HLA (5/10) Unrelated, HLA mismatched (9/10)
Conditioning regimen TLI (8 Gy in 4 fractions) + Endoxan + ATG TLI (8 Gy in 4 fractions) + Endoxan + ATG TLI (8 Gy in 4 fractions) + Endoxan + ATG
Engraftment + + +
Pretransplant CMV status
   Recipient IgM(−), IgG(+), viral load: undetectable IgM(−), IgG(+), viral load: undetectable IgM(−), IgG(+), viral load: undetectable
   Donor IgM(−), IgG(+) IgM(−), IgG(+) IgM(−), IgG(+)

ATG, anti-thymocyte globulin; CsA, cyclosporine A; ANC, absolute neutrophil count; ARC, absolute reticulocyte count; MUD-PBSCT, matched unrelated donor peripheral blood stem cell transplantation; MMUD, mismatched unrelated donor; BMT, bone marrow transplantation; TLI, total lymphoid irradiation; CMV, Cytomegalovirus; HLA typing, A, B, C, DR, DQ.

Engraftment

Engraftment after HSCT is defined as an ANC greater than 0.5×109/L on the first day of three consecutive days (5). Engraftment of these 3 patients occurred on the post-transplant days 17, 11, and 12, respectively. At 1-month post-transplantation, two of the patients’ peripheral blood genotypes were identical to that of the donors on short tandem repeat (STR) genotype analysis. Primary graft failure is characterized by the absence of initial donor cell engraftment (donor cells less than 95%) or peripheral blood ANC <0.5×109/L by day +28 after allo-HSCT from peripheral blood or bone marrow progenitors in the absence of relapse. The engraftment rate was 100%, with no cases of primary graft failure (Table 1). Engraftment was seen after a median of 12 days (range, 11–17 days). However, the second patient experienced fatal infection complication of cytomegalovirus (CMV) viremia two and a half months after bone marrow transplantation. This patient eventually died from sepsis 3 months after transplantation. HSCT successfully transformed the two survived patients from transfusion-dependent to transfusion-independent status.

Patient survival

The first and the third patient received hematopoietic stem cell from matched or mismatched unrelated donors; they were still alive and under regular clinical follow-up when this analysis closed. However, the second patient died from CMV viremia 3 months after transplantation. She had been treated with ganciclovir after a plasma CMV viral load of 24,000 cp/mL was found on day +49. In combination with ganciclovir, CMV intravenous immunoglobulins were added on day +57. The antiviral treatment was shifted to Foscarnet due to her pancytopenia and CMV viremia progression on day +62 (with a CMV viral load of 202,000 cp/mL). Despite our treatment, she eventually died from sepsis on day +95. Overall survival is defined as the time period from day 0 of transplantation to death. Event-free survival is defined as the time period from day 0 of transplantation till any of the following events occurs: the recurrence of SAA, secondary graft failure, or death. The 18-month overall survival and event-free survival were both 66.7% among the 3 patients, and were 100%, if the second patient who underwent haplo-identical transplantation was excluded. The median survival was not reached.

Adverse events and graft-versus-host disease (GVHD)

Standard scores for GVHD on a scale from grade 0 through grade 4 were used during the first 100 days after transplantation to diagnose acute GVHD (6), and thereafter, patients were evaluated for chronic GVHD, which was classified as absent, limited, or extensive (7).

Of the three patients, non-demonstrated grade 2 or worse radiation adverse events occurred. Table 2 listed the adverse events of these 3 patients. Aside from the side effects caused by the regimens used in transplantation, all of the patients experienced acute GVHD of variable severity. The first patient experienced stage 1 gastrointestinal tract involvement; the second patient suffered from stage 3 skin involvement; the third patient demonstrated stage 2 skin erythema. No one experienced acute grade 3 or worse GVHD. Although the GVHD were well-controlled by cyclosporine and methotrexate, the first patient eventually developed cyclosporine-related acute renal injury. None of these patients experienced chronic GVHD.

Table 2

The acute adverse events related to transplantation

Adverse events The 1st patient The 2nd patient The 3rd patient
Chemotherapy or immunosuppressant related toxicity CsA related AKI Septic shock (CMV viremia), acute kidney injury Post-transplant lymphoproliferative disorder, Gr. 4 neutropenia, Gr. 2 nausea, and Gr. 1 vomiting
Radiation related toxicity Gr. 1 nausea and vomiting Absent Absent
GVHD, acute Stage 1 GI, acute Stage 2 skin Stage 2-3 skin
GVHD, chronic Absent Absent Absent

CsA, cyclosporine A; AKI, acute kidney injury; CMV, Cytomegalovirus.

Dose-volume distribution

Table 3 shows the dose-volume distribution characteristics using tomotherapy and the dose-volume differences from tomotherapy-based plans to conventional 2D plans. Tomotherapy provided a better treatment target coverage with a median absolute increase by 9.76% of PTV coverage (an average 10% higher than 2D plans), while reducing the global maximum dose. Tomotherapy yielded better homogeneity of dose distribution and omitted the dose uncertainty caused by the field junctions of the mantle and the inverted Y fields. As the organs of interest, tomotherapy demonstrated reduced or similar maximal point dose. Furthermore, it reduced the volume of the medium to low dose exposure. The decreased percentage volume of 5 Gy (V5) of tomotherapy-based plans reflected this effect, especially for the organs near the treatment targets, like lung, heart, liver, stomach, kidneys, and skin. There was a median absolute reduction of 17.19% in the volume of the total body exposed to 5 Gy or more (V5) by using tomotherapy (an average 35% lower than 2D plans) (Table 3 and Figure 3), which perhaps could transfer to lower secondary malignancy rate in the future. Figure 3 illustrates the isodose distribution of tomotherapy-based and 2D plans respectively. Tomotherapy not only reduced the high dose area (such as the volume of ≥105% prescribed dose) but also eliminated the uncertain dose distribution caused by field junctions.

Table 3

The dose-volume parameters and the difference between tomotherapy and 2D plans

Targets The median value (Gy or %) Average dose increase/reduction (%)
Tomotherapy Conventional 2D
CTV 99.9 94.04 8.14
PTV 96.33 88.17 10.01
Global maximum 109.63 116.13 −5.6
Brain stem max 1.68 1.47 44.33
Spinal cord max 6.72 8.6 −29.21
Cauda equine max 7.58 8.68 −10.3
Eye L. max 0.48 2.84 −40.67
Eye R. max 0.31 2.73 −38.97
Lens L. max 0.2 2.23 −66.58
Lens R. max 0.19 2.19 −65.61
Optic nerve L. max 0.24 1.45 −60.46
Optic nerve R. max 0.24 1.5 −65.17
Parotid L. max 8.37 8.69 −2.91
Parotid R. max 8.44 8.58 −2.09
Ear L. max 1.04 0.55 83.85
Ear R. max 0.45 0.61 70.24
Lung max 8.53 8.79 −2.61
   Mean 5.08 4.62 4.87
   V5 49.85 48.93 −5.48
Heart max 8.51 8.61 −1.05
   Mean 6.18 6.77 −12.28
   V5 60.71 81.86 −31.09
Liver max 8.38 8.63 −2.58
   Mean 3.25 2.57 16.77
   V5 19.76 27.24 −46.76
Stomach max 8.46 8.68 −3.07
   V5 64.16 95.13 −32.83
Kidney L. max 8.46 8.76 −3.28
   V5 43.41 78.8 −35.09
Kidney R. max 7.34 8.18 −8.54
   V5 1.47 16.61 −71.12
Bowl max 8.57 8.8 −1.77
   V5 26.94 47.53 −40.11
Bladder max 8.57 8.45 59.24
   V5 20.28 58.46 −31.23
Rectum max 7.38 8.37 −4.34
   V5 11.1 30.78 −1.47
Testis/penis max <1 4.93 −82.35
Ovaries max scattered 0.13
Skin max* 8.58 9.22 −5.4
   V5* 7.45 22.49 −79.12
Whole body max 8.77 9.29 −5.48
   V5 20.29 37.15 −34.96
Femoral head L. max 8.11 8.29 −1.14
Femoral head R. max 7.18 8.35 −9.33

Since the brain stem, eyes, lens, optic nerves, ears, bladder, rectum, and femoral heads of the second patient only have scattered dose or almost 0, it’s hard to evaluate the differences between the tomotherapy and 2D plans. The table only showed the values of the average of the first and third. *, only the 3rd patient had dose-volume data of “skin” (the area from cutaneous surface to 0.5 cm depth of subcutaneous); the other two patients use “whole body” as substitution for evaluation; , the data represents the dose-volume difference of the 3rd patient, since the “testis and penis” of the 1st patient and the “ovaries” of the 2nd patient received only scattered dose in both tomotherapy-based and 2D plans due to the distance from target volumes.

Figure 3 The isodose curves. The isodose curves of tomotherapy (A,B,C,D,E,F) and 2D (G,H,I,J,K,L,M,N) plans. The tomotherapy-based plan has more homogenous dose distribution. The anterior-posterior opposed technique generates more high-dose area and the under-dose area at field junction.

Discussion

The definitive treatment modalities of acquired SAA are immunosuppression or hematopoietic stem-cell transplantation. Therapy involves combination of ATG and cyclosporine to form intensive immunosuppression for SAA patients. For patients that had a matched sibling donor, a full recovery is achievable by hematopoietic stem-cell transplantation, from an allogenic HLA-matched donor, and with excellent long-term results. With the aid of improvement in conditioning regimens and GVHD prophylaxis, the most encouraging survival achieved 80% to 90% at 5 years or longer (8-12). However, only 20% to 30% of patients have available matched sibling donors. Thus, unrelated donors become an alternative source of HSCT.

Unrelated donor transplant is currently offered for children without matched sibling donors who have very severe disease or have failed one or two courses of immunosuppressive therapy, and adults who have failed multiple courses immunosuppression therapy and or alternative therapies such as androgens (13). Unlike allogeneic sibling transplants, transplants from unrelated donors may require irradiation to ensure engraftment, perhaps, due to the source of the donor cells and the transfusion status of the recipient. In a multicenter study at Seattle, 62 SAA patients underwent matched unrelated stem-cell transplantation, with preparative conditioning regimen of cyclophosphamide, ATG and total body irradiation (TBI); the graft failure rate was 2%, grade II to IV acute GVHD was observed in 70%, chronic GVHD was observed in 52%, and overall survival was 61% at 5 years (14). On the other hand, 25 patients who had HLA-nonidentical stem cell transplants in the same study, sustained engraftment was achieved in 88% and 5-year overall survival was 44%. In contrast, a European registry substituted irradiation with fludarabine for unrelated and mismatched family donors (15). Eighteen percent of the recipients had graft failure. In prospective studies of alternative donor stem-cell transplantation for SAA with irradiation constituting the conditioning regimen, the overall survival ranges from 56% to 100% (14,16,17).

Conditioning with TLI plus antithymocyte globulin provides a protective effect against the development of acute GVHD after hematopoietic-cell transplantation (18). In this study, thirty-seven patients with lymphoid malignant diseases or acute leukemia underwent hematopoietic-cell transplantation from HLA-matched related or unrelated donors using TLI plus antithymocyte globulin as the conditioning regimen. Only 2 of the 37 patients had acute GVHD. The study also observed an increased production of interleukin-4 and a reduced proliferative response of donor CD4+ T cells from patients who underwent conditioning with TLI, rather than TBI, which was mandatory for reducing the incidence of acute GVHD.

Lee et al. retrospectively evaluated twenty SAA patients who were multi-transfused or who had graft failure from prior HSCT (19). The conditioning regimen prior to allogeneic HSCT was ATG plus a single fraction TLI with a median dose of 7.5 Gy in 1 fraction. Two primary graft failures and 4 late graft failures were found later. With a median follow-up of 10.8 years, the overall survival rate was 83.1% at 10 years. The acute and chronic GVHD rates were both 20%. The authors chose single-fraction TLI because they wanted to shorten the radiation treatment period for these immunosuppressed and pancytopenic patients. Unlike patients with hematological malignancies, marrow aplasia disorders do not require large irradiation fields. The limited fields would lower the incidence of pneumonitis, as well as the impact on growth, endocrine, or fertility of children or young patients. To our knowledge, currently, there is no randomized trial comparing single- or multi-fraction TLI. One landmark trial randomized 53 non-lymphoblastic leukemia patients in their first complete remission to 10 Gy in a single exposure, or 2 Gy/day for 6 days TBI before an allogeneic marrow transplant (20). The fractionated arm had a significant overall survival benefit over the single-fraction arm. Fewer patients in the fractionated arm developed interstitial pneumonitis and severe acute GVHD. Based on the experience with TBI, our institute chose multiple fraction TLI rather than a single exposure.

Each of the 3 patients in our study represented the recipient of HLA-matched unrelated donor, haploidentical related donor, and HLA-mismatched unrelated donor, respectively. The engraftment rate was 100%. Despite engraftment, the recipient of haploidentical transplantation died of infectious complications on day +95. After a median follow-up of 563 days, the overall survival rate was 66.7% for the whole cohort, which was comparable with the historical data. Older age and haploidentical transplantation from a family member are both poor prognostic factors for transplantation (21). This could partially explain the early death of the second patient. For transplantation from HLA-matched and HLA-mismatched (9/10) unrelated donors, the overall survival was 100% at 18 months in our study. None of the 3 patients experienced grade 3 or worse GVHD. This could again confirm that TLI has an effect of decreasing GVHD.

TLI has been traditionally administered through a linear accelerator or a cobalt-60 machine with anterior-posterior opposed fields toward the major lymph node regions and spleen. Bony landmarks work as reference points for patient setup. Due to the limited field length of a linear accelerator and a cobalt-60 machine, this technique requires changing patient’s position, which may result in dose heterogeneity. The treatment field length of tomotherapy may expand to up to 130 cm through the translational movement of the couch. Helical tomotherapy combines image-modulated radiotherapy with megavolt computed tomographic image guidance. Tomotherapy technique provides not only improvement of dose homogeneity, precise treatment positioning, but also satisfying coverage of the nodal and splenic CTVs with a rapid drop-off of dose near the critical structures.

McCutchen et al. reported a single institution’s experience of TLI performed by helical tomotherapy in an adult patient with late-onset cardiac transplant rejection (22). The prescribed dose was 8 Gy to 95% of PTV, in 10 twice-weekly fractions. Tomotherapy intensity-modulated TLI relieved the rejection episode and allowed minimization of dose to critical organs, especially the spinal cord, kidneys, liver, and lungs. Within the first month of post-radiation follow-up, the patient was well-tolerated without recorded acute adverse event. Balasz et al. compared the dose distributions of TLI from 4 irradiation techniques, with a dose of 12 Gy in 3 fractions: IMRT, VMAT, tomotherapy to conventional radiation (23). Tomotherapy obtained the highest minimum dose and V95% (volume covered by 95% prescribed dose) for CTV. The lenses, spinal cord, heart, and parotid glands benefited most from dose reduction in relation to the conventional plan by using rotational techniques. The conventional technique performed superiorly on sparing lungs (with lower mean and median doses), liver, and right kidney.

Since TLI covers a large part of body volume, secondary malignancy should also be taken under consideration. The direct correlation with secondary malignancy to TBI is difficult to distinguish due to the general use of immunosuppressive medication in such a population. The most commonly mentioned secondary malignancies seen following TLI series are lymphomas, along with skin cancers, with the rate of 2–12% (24-26). Hall et al. suggested that the dose-response relationship for radiation-induced cancer is complex: the risk increases with doses up to about 4 Gy, and they strongly favor a model with a plateau after a dose of about 5 Gy (27). Thus, to reduce the volume exposed to a dose of 5 Gy or more as low as possible seems reasonable. To the best of our knowledge, this is the first study to directly compare the dosimetry characteristics of tomotherapy and anterior-posterior opposed technique TLI in SAA patients with available engraftment and survival outcome results. In our study, tomotherapy apparently reduced the volume of low dose exposure compared to the conventional anterior-posterior opposed technique. The whole body V5 decreased by an absolute 17.19%, which indicates that tomotherapy had an average 35% lower V5 than 2D plans. Figure 4 shows the dose-volume histogram (DVH) for the total body V5 of tomotherapy and 2D technique respectively. This may probably result in a reduction of secondary malignancy risk. Apart from conventional 2D technique, intensity-modulated radiation therapy (IMRT) and volumetric arc therapy (VMAT) could achieve good coverage, but none of these techniques could avoid the uncertain dose distribution at the field junctions in TLI.

Figure 4 The DVH comparison. The dose-volume histogram of tomotherapy-based (solid lines), and anterior-posterior opposed 2D (dashed lines) plans of the 3rd patient. The DVH curves of 2D plan shifts to the right, which implies that more parts of the body and OARs were under exposure of ≥5 Gy. DVH, dose-volume histogram; OARs, organs at risk.

To conclude, we suggest tomotherapy as an ideal technique to deliver TLI.

There are still some limitations to our study. First, we only recruited 3 patients, a small representative sample. However, owing to the rare incidence of SAA and even rarer use of TLI in SAA transplantation, like in previous studies, we could only gather a small sample size. Thus, the study still holds value from the information collected from these rare disease states. Secondly, due to the retrospective feature of our study, we did not have an identical dose constraint criterion for each patient as is preferred. Thirdly, to define chronic events like GVHD or radiation-induced second malignancy, as well as the survival outcome, we need a long-term follow-up over several years to identify effectiveness of treatments.


Conclusions

From our single-institution experience, tomotherapy-based TLI plus non-ablative regimens for pre-transplantation conditioning achieves an excellent engraftment rate (100%) as well as a satisfying survival in SAA patients undergoing hematopoietic stem cell transplant with non-sibling donors. TLI ensured the engraftment and reduced the occurrence of GVHD. Besides, tomotherapy-based TLI takes advantage of lessening the volume of low dose exposure and avoiding the field junctions. Perhaps this benefit may further transfer to lower secondary malignancy rate in a long-term follow-up.
